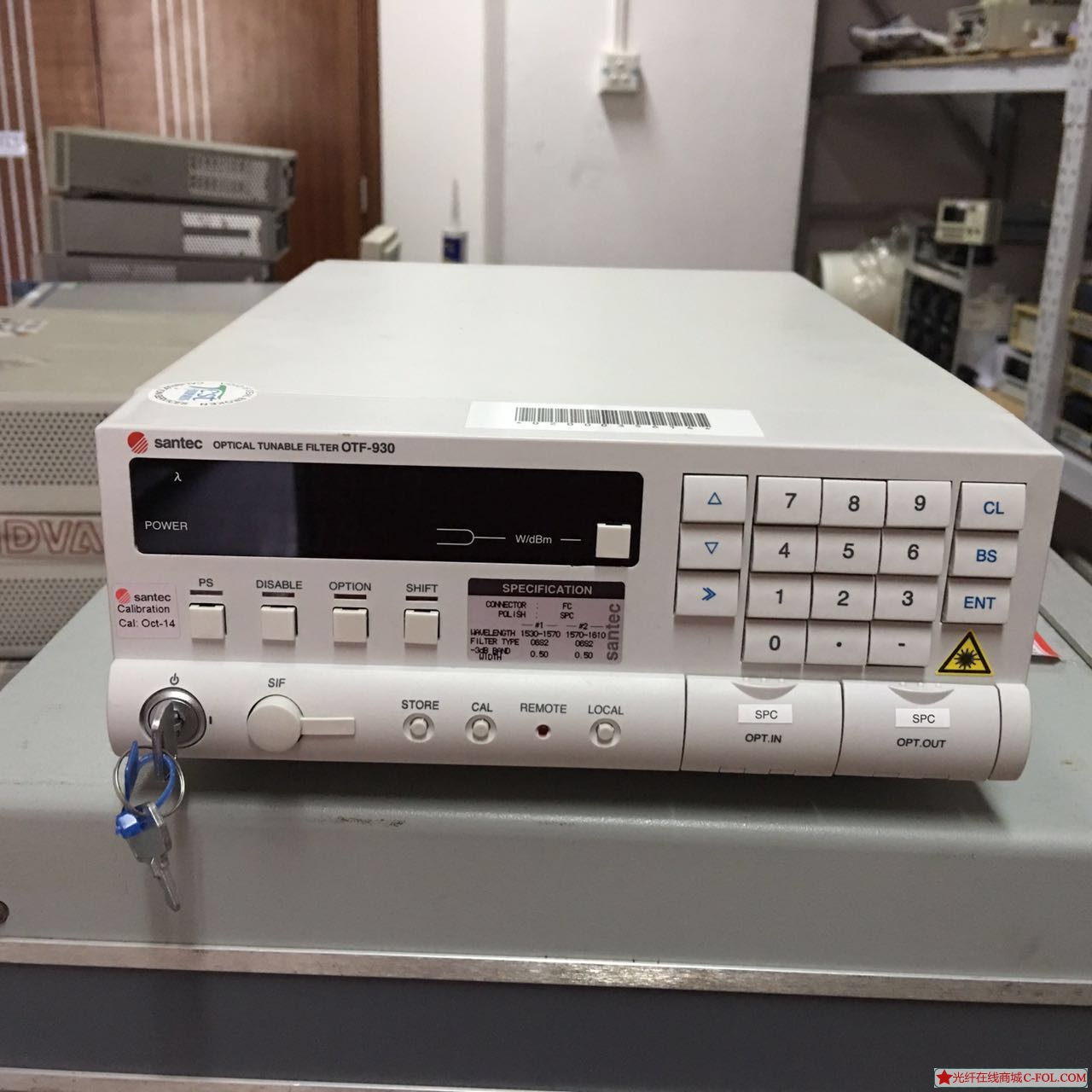

Features
l 80nm tuning range
l Low insertion loss
l Low PDL (<0.1dB) & PMD (<0.1ps) overwhole tuning range
l 0.01nm resolution
l Full GPIB support
Specifications
Category | Parameter | Unit | Specification | Notes |
Wavelength Characteristics | Wavelength Resolution | nm | 0.01 | Mechanical resolution |
Wavelength Accuracy | nm | <±0.1, <±0.15(24), <±0.2(50) | ||
Wavelength Repeatability | nm | <±0.05, <±0.1(50) | n=50/ Measured at center wavelength of slider | |
Wavelength Dependence | nm | <±0.1 | ||
Temperature Stability | pm/oC | 2 | ||
Power Characteristics | PDL | dB | <0.1 | Filter Structure(S1) |
<0.2 | Filter Structure(S2) and (S3) | |||
Insertion Loss | dB | -- | ||
Return Loss | dB | >45 | Refer to "Filter Selections" (Typ.) | |
Power Monitor | Relative Accuracy | dB | <±0.1 | Output Power : -20~+10dBm |
Max Rating | Maximum Input Power | dBm | +20 | Damage Threshold |
PMD | PMD | ps | <0.1 | Design guaranteed performance |
Environmental Conditions | Operating Temperature | oC | 20- 30 | |
Operating Humidity | % | <80 RH | Non condensing | |
Interface | Optical Connector | - | FC or SC | |
Connector Polish | - | SPC or APC | *1 | |
Power Supply | Communication Interface | - | GPIB & RS-232C | I EEE-488 |
Voltage | V | AC100-240 | ||
Frequency | Hz | 50/60 | ||
Dimensions | Power Consumption | VA | 35@230 to 240V 30@100 to 120V | |
Width x Height x Depth | Mm | 210 x 80 x 300 | ||
Weight | kg | 4 |
|
