Product Features:

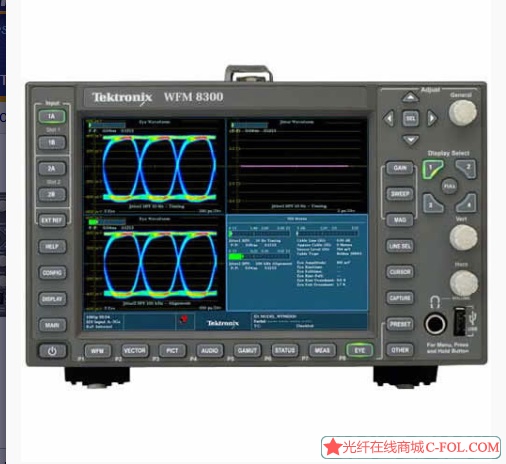

- Video/Audio/Data Monitor and Analyzer – All-in-One Platform
- Comes standard with auto-detection of HD/SD-SDI and multiple Dual Link video formats
- 4K format support (requires Options 4K, 3G and 2SDI)
- Optional capabilities include 3G-SDI (Level A and Level B) formats support (Option 3G), composite analog video support (Option CPS), as well as analog and digital audio (Option AD) and Dolby E, Dolby Digital Plus, and Dolby Digital audio (Option DPE) decodingand monitoring
- Comes standard with Simultaneous Input Monitoring capability, ANC Data Inspector, and numerical/graphical display of A/V delay for analog, digital audio (Option AD), and Dolby (Option DPE)
- Multiple Input Mode allows monitoring of 2 to 4 SDI inputs simultaneously (4-input mode requires Option 2SDI)
- Superior Physical Layer Signal Integrity Analyzer
- Most accurate 3G-SDI jitter waveform display and eye pattern display in the waveform series and patented cable length measurement (Option PHY with Option 3G)
- Most comprehensive eye pattern measurements including eye amplitude, rise/fall time, and overshoot/undershoot measurements as well as Tektronix jitter waveform display (Option PHY)
- Field-upgradeable HD/SD-SDI eye pattern input module to full 3GSDI and HD/SD-SDI support with the purchase of an upgrade key (WFM830UP with Option 3G)
- Black picture and Tektronix-patented frozen picture detection (3G/HD/SD-SDI formats)
- Tektronix-patented Timing and Lightning displays Tektronix-patented Spearhead display and Luma Qualified Vector
